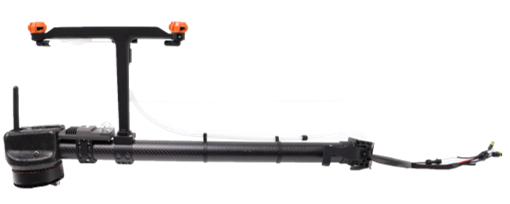

This package contains everything you would need to replace faulty or damaged parts for the front left M2 aircraft arm on your DJI Agras T30 Aircraft.
This package includes:
| No. | Material Number | Material Name | Qty |
|
1 |
YC.JG.FP000015.02 | Left and Right Motor Protector | 1 |
| 2 | YC.JG.MQ000556.02 | Left and Right Aircraft Arm Friction Pad | 1 |
| 3 | BC.AG.SS000386.01 | M2 Aircraft Arm (Front Left) | 1 |
| 4 | YC.JG.LD000026.02 | Aircraft Arm Fixing Screw Bolt | 1 |
| 5 | YC.ST.LM000030.01 | M50-HN080070-0003 | 1 |
| 6 | YC.XC.XX000722.04 | On-Site Measurement Signal Cable | 1 |
| 7 | YC.JG.ZS001306.04 | On-Site Measurement Bracket | 1 |
| 8 | YC.WJ.L01213.01 | Screw T25-HC080080-45-21 | 1 |
| 9 | YC.JG.QX001243.03 | Locking Piece_Handle Connecting Rod Shaft | 1 |
| 10 | YC.JG.MY000353.03 | Locking Piece_Handle Rubber Sleeve | 1 |
| 11 | YC.JG.QX001242.03 | Locking Piece_Connecting Rod | 1 |
| 12 | BC.AG.SS000421.01 | Locking Piece Handle Module | 1 |
| 13 | YC.JG.MQ000832.01 | Teflon Wrap (Not included) | 0 |
| 14 | YC.JG.QX001240.02 | Locking Piece_Aircraft Arm Connecting Rod Shaft | 1 |
| 15 | YC.WJ.L00871.02 | M30-HC100100-55-85 V2 | 1 |
| 16 | YC.WJ.L00961.01 | M4 Stainless Locknut | 1 |
| 17 | YC.JG.LD000023.03 | Left and Right Locking Piece Screw Bolt | 1 |
| 18 | YC.JG.TT000062.03 | Locking Piece Spring | 1 |
| 19 | YC.XC.XS000007.04 | M2&M6 Aircraft Arm ESC Composite Cable | 1 |
| 20 | YC.WJ.LL000213.02 | M30-HT01930060-110025-5103-Y | 1 |
| 21 | BC.AG.SS000380.02 | ESC Module | 1 |
| 22 | YC.WJ.L00870.02 | M30-HC060060-55-85 V2 | 4 |
| 23 | YC.WJ.L00871.02 | M30-HC100100-55-85 V2 | 2 |
| 24 | YC.WJ.LL000232.02 | M40-HC01000100-072028-5103-N_01 | 4 |
| 25 | YC.ST.LL000122.01 | M30-HT01930060-110025-5103-Y 01 | 2 |
| 26 | BC.AG.SS000381.01 | 10018 Motor | 1 |
| 27 | YC.JG.ZS001009.03 | ESC Bracket | 1 |
| 28 | YC.PM.QT000118.01 | Power Board Port Protecting Foam | 1 |
| 29 | YC.JG.QX001171.05 | Motor Fixing Base (Front and Rear) | 1 |
| 30 | YC.JG.ZS001450.02 | Motor Upper Cover | 1 |
| 31 | YC.JG.ZS001155.03 | Spray Lance Rubber | 1 |
| 32 | YC.WJ.LL000017 | M20-TC050050-33-00 | 4 |
| 33 | YC.JG.ZS001152.03 | Spray Lance Fixing Base | 1 |
| 34 | YC.JG.LD000032.02 | Motor Locating Pin | 2 |
| 35 | YC.WJ.LL000232.02 | M40-HC01000100-072028-5103-N_01 | 2 |
| 36 | YC.WJ.L00871.02 | M30-HC100100-55-85 V2 | 2 |
| 37 | YC.WJ.LL000120 | M30-HPW080050-80-85 | 4 |
| 38 | YC.JG.ZS001186.01 | Aircraft Arm Tube Clamp | 1 |
| 39 | YC.WJ.L00871.02 | M30-HC100100-55-85 V2 | 1 |
| 40 | YC.JG.ZS001134.01 | SDR Antenna Fixing Cover | 1 |
| 41 | YC.WJ.L00870.02 | M30-HC060060-55-85 V2 | 4 |
| 42 | YC.JG.ZS001135.04 | SDR Antenna Bracket | 1 |
| 43 | YC.WJ.L00871.02 | M30-HC100100-55-85 V2 | 2 |
| 44 | YC.DZ.AA000180.03 | SDR Antenna | 1 |
| 45 | YC.ST.LL000122.01 | M30-HT01930060-110025-5103-Y 01 | 1 |
